Moulded Case Circuit Breaker

  • MCCB WCM5-100L-3300-4300
  • MCCB WCM5-100L-3300-4300
  • MCCB WCM5-100L-3300-4300
  • MCCB WCM5-100L-3300-4300
  • MCCB WCM5-100L-3300-4300
  • MCCB WCM5-100L-3300-4300
MCCB WCM5-100L-3300-4300 MCCB WCM5-100L-3300-4300 MCCB WCM5-100L-3300-4300 MCCB WCM5-100L-3300-4300 MCCB WCM5-100L-3300-4300 MCCB WCM5-100L-3300-4300

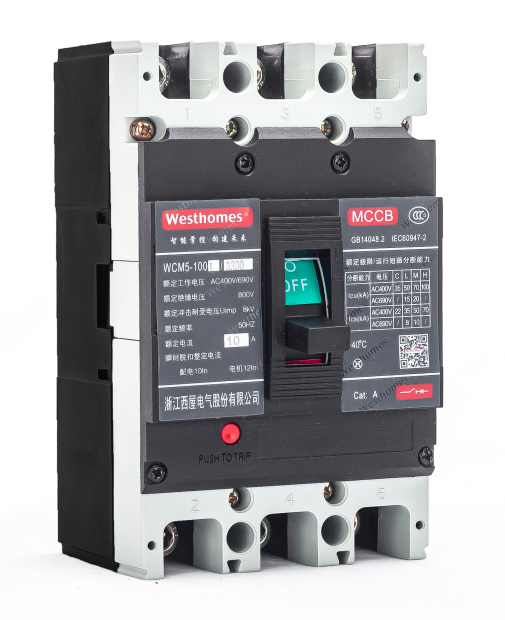

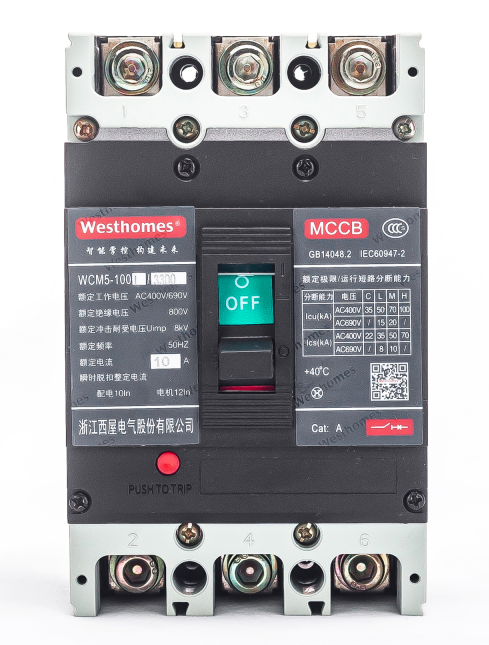

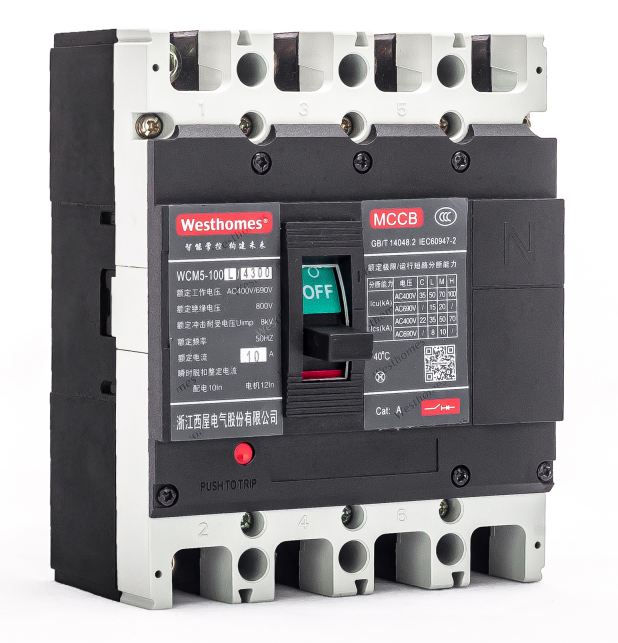

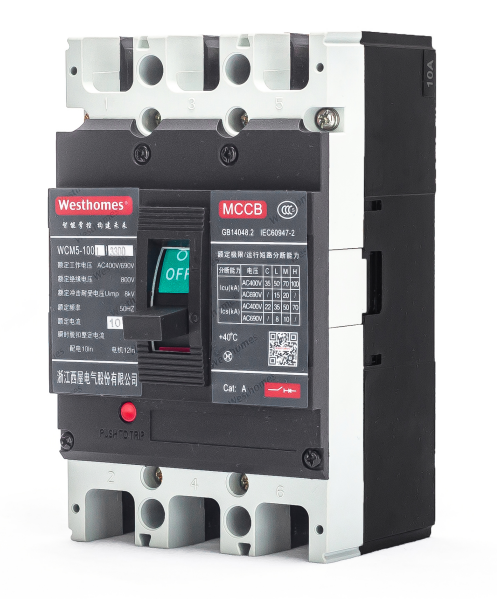

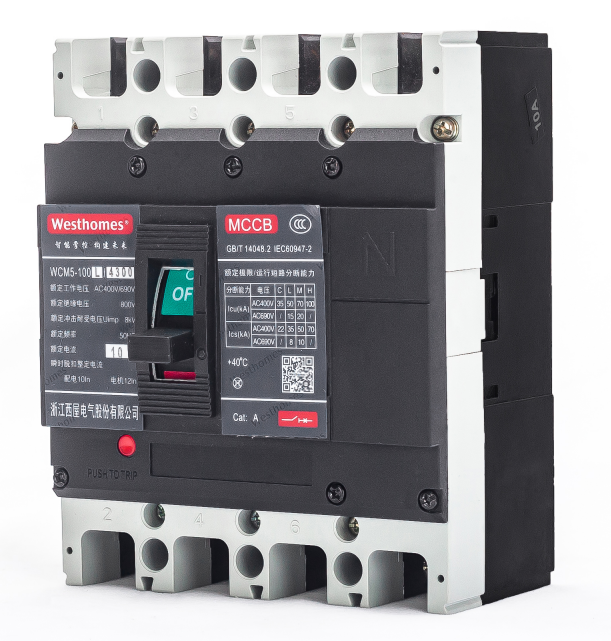

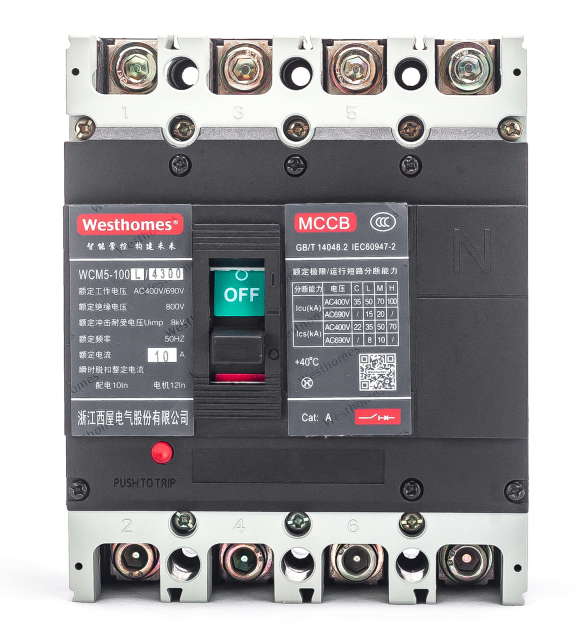

MCCB WCM5-100L-3300-4300

Key Information

WCM5

Pole: 3P, 4P

Voltage: AC400/690V

kA: 35-100kA

Inm(A): 100, 250, 400, 630

In(A): 10, 16, 20, 25, 32, 40, 50, 63, 100, 125, 140, 160, 180, 200, 225, 250, 315, 350, 400, 500, 630

General

WCM5 sereis moulded case circuit breaker (MCCB shor short), is one of new type breakers researched and developed by advanced design and manufacture technology with rated operation voltage upto 690V, rated insulation voltage 800V, rated impulse withstand voltage upto 8kV, rated operation current from 10A to 630A. WCM5 series MCCB applies for distribution and motor protection, also for fire protection.
MCCB has functions of overload, short circuit, under voltage to protect the line and power devices from demage. It is divided into four types of Type C (basic), Type L (standard), Type M( higher breaking capacity) and Type H (highest breaking capacity) according to rated ultimate short circuit breaking capacity ranking. It has features of small volume, high breaking, short flashover (no flashover with shield) etc.
The product with beautiful apperance and reasonable layout, can be vertical and horizontal installed, is the extremely ideal electrical product.

Main technical parameters

ModelFrame level rated current Inm (A)Current rating (A)Rated operation voltage (V)Rated insulation voltage (V)Rated ultimate circuit breaking capacity (kA)Rated operation circuit breaking capacity (kA)
400V690V400V690V
WCM5-100C10010, 16, 20, 25, 32, 40, 50, 63400/69080035
22
WCM5-100L5015358
WCM5-100M70205010
WCM5-100H100
70
WCM5-250L250100, 125, 140, 160, 180, 200400/6908005015358
WCM5-250M70205010
WCM5-250H100
70
WCM5-400L400225, 250, 315, 350, 400400/6908005015508
WCM5-400M70207015
WCM5-400H100
75
WCM5-630L630400, 500, 630400/6908005015508
WCM5-630M70207015
WCM5-630H100
75


PREVIOUS:MCCB WCM4 NEXT:WCM5-250L 3300-4300
